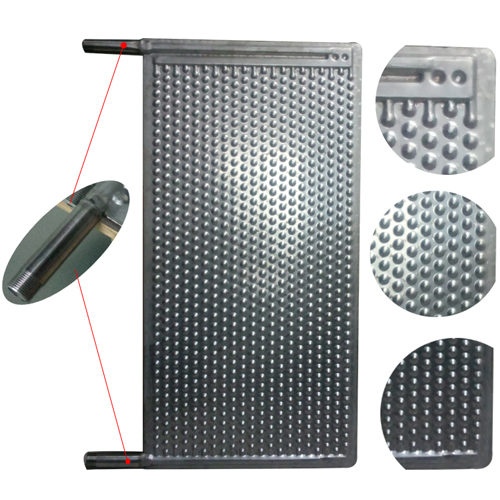

flat plate heat exchanger

  • Dimension: Optional
  • Heat exchanger transfer heat energy from stream or liquid(through the plate)into liquidcooling or heating the liquid inside.
  • Detailed description

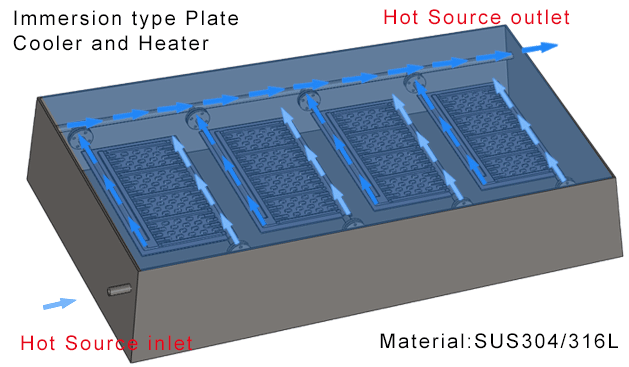

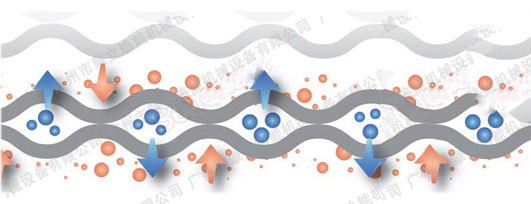

  • Mechanism diagram
  • Detailed parameters

Heat exchanger transfer heat energy from stream or liquid(through the plate)into liquid,cooling or heating the liquid inside.
1、chemical surface treatment
2、coating industry
3、Acid liquid heating
4、pool or tank water heating
5、other liquid(steam) to liquid heat exchange
Suitable for low pressure immersion heat exchange, higher efficiency than plate heat exchangers
Design Pressure:0.6Mpa
Test pressure:0.85Mpa
Working temperature:-20~280℃

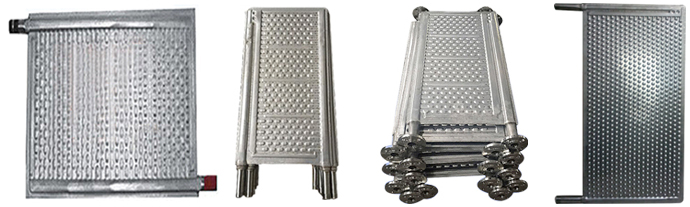

plate cooler

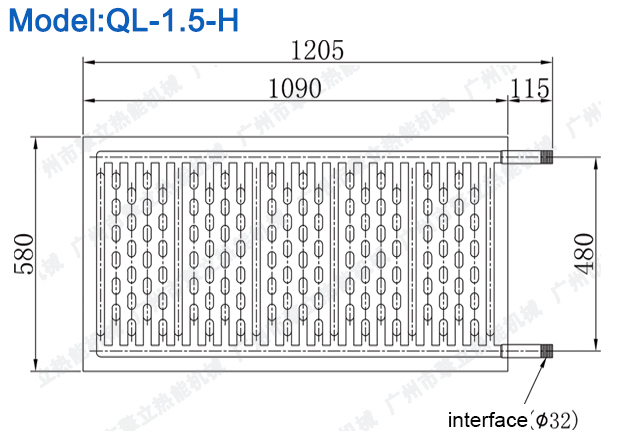

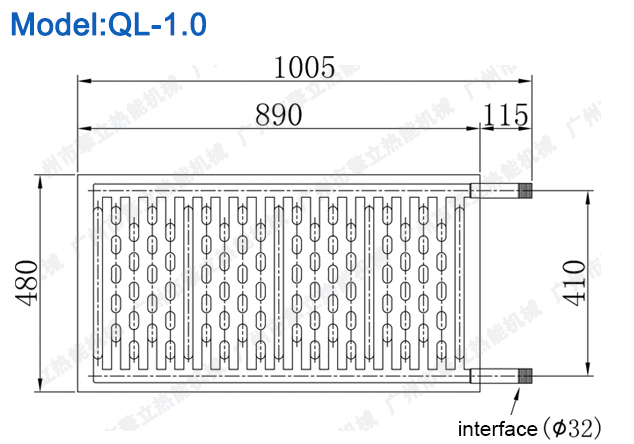

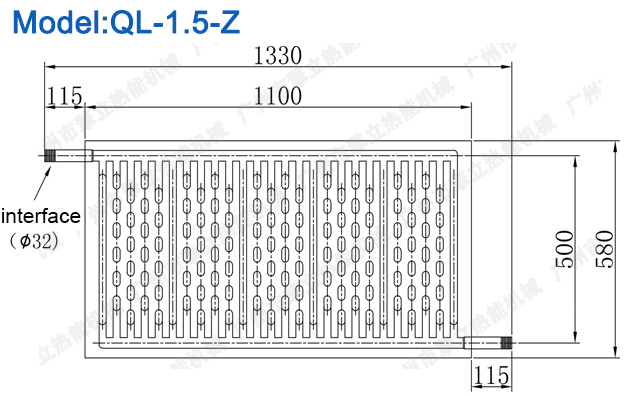

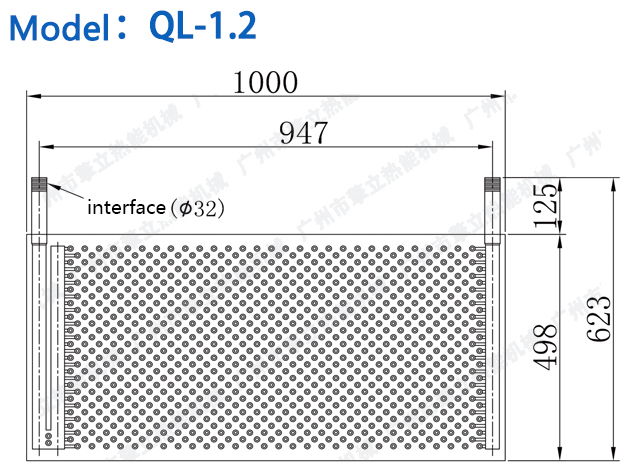

Model  1.0 1.2 1.5-H 1.5-Z
Dimensions(mm) 480x1005x26 623x1000x25 580x1205x26 580x1330x26
NET Weight(kg) 7.0 7.3 10.6 10.6
Heat transfer area(m2) 1.0 1.2 1.5 1.5
