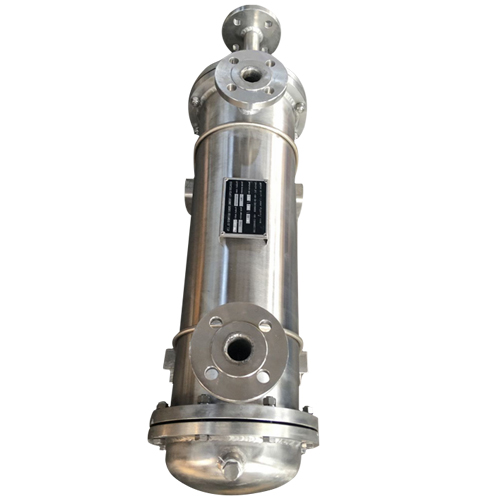

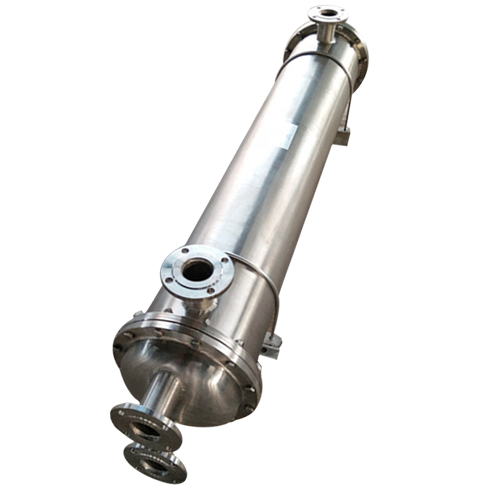

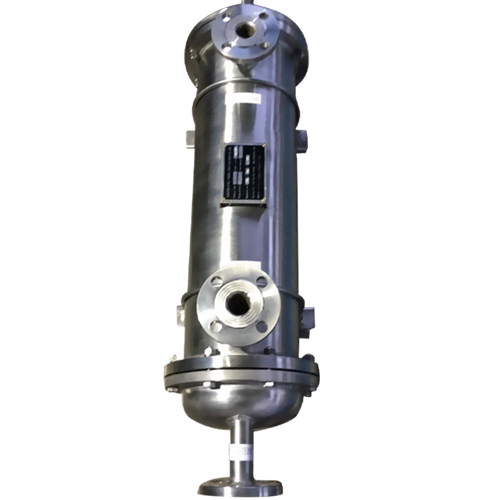

Tube tpye oil cooler

Dimension： Optional

Tubular heat exchanger widely using in heating and cooling treatment of materials during production in food beverage Pharmacy chemical industry

Detailed description

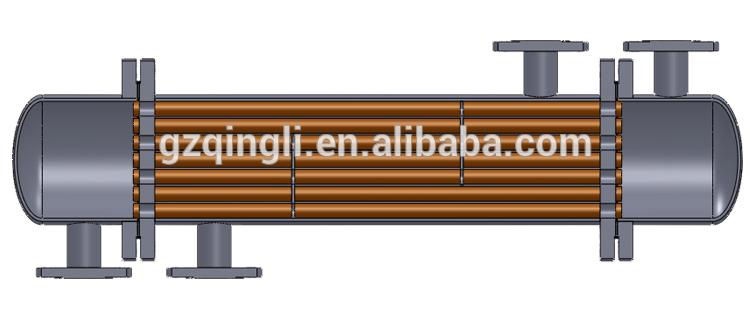

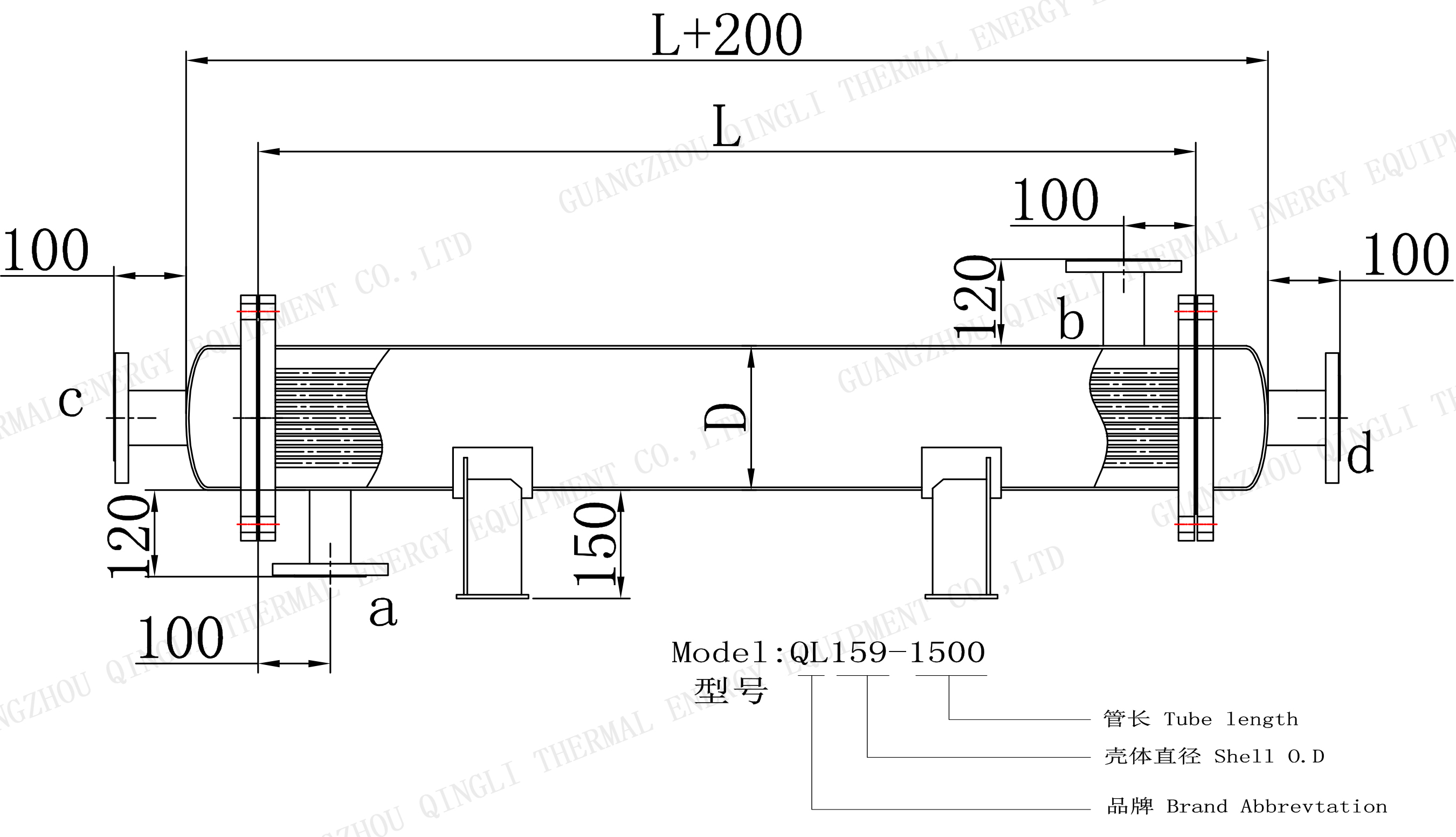

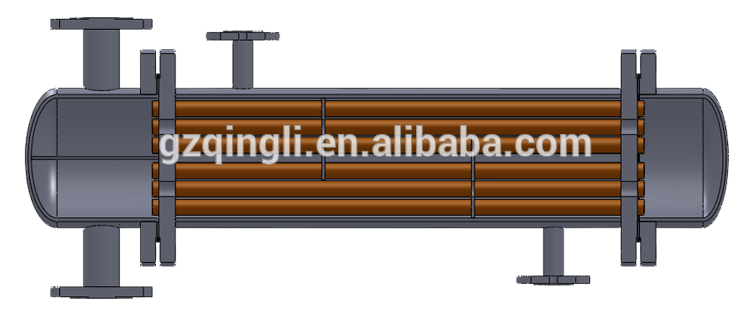

Mechanism diagram

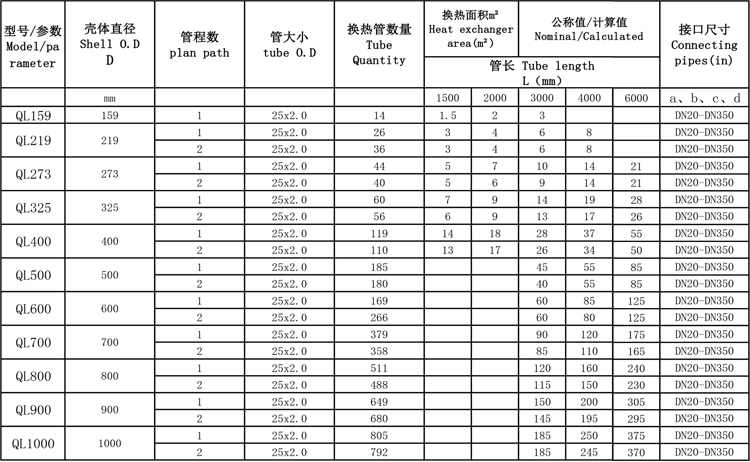

Detailed parameters

Tubular heat exchanger widely using in heating and cooling treatment of materials during production in food, beverage, Pharmacy, chemical industry etc,tube heat exchanger could be designed and produced according customers various requirements.different material ,size accepted.

Material:stailess steel or copper

Tubular Heat Exchanger Application:

Shell and tube heat exchanger is widely used for freezing industries,such as plating,oxidation,chemical industry,metallurgy,light industry,shipbuilding,heating, pharmaceutical,foodstuff ect, also for leather chiller, injection molding machine chiller, print chiller,PV shoe machine chiller and so on.

Customzied size optional

1、Design products according to new requirementsand Provide design drawings

2、The customer confirms whether the drawings meet the requirements.

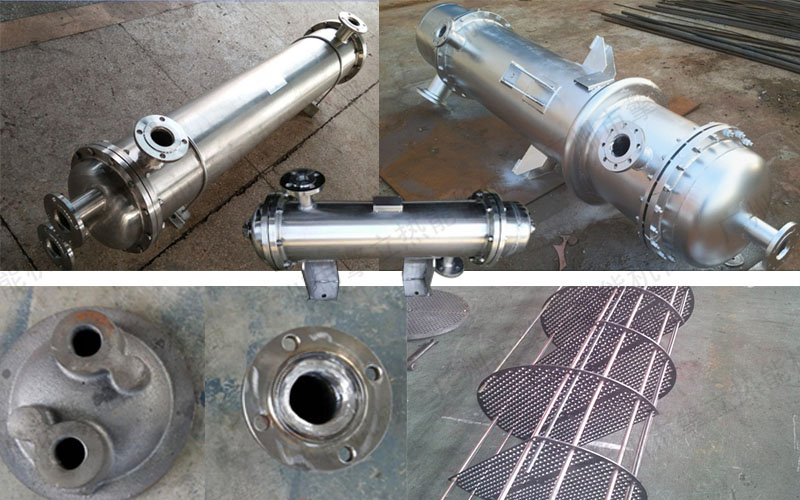

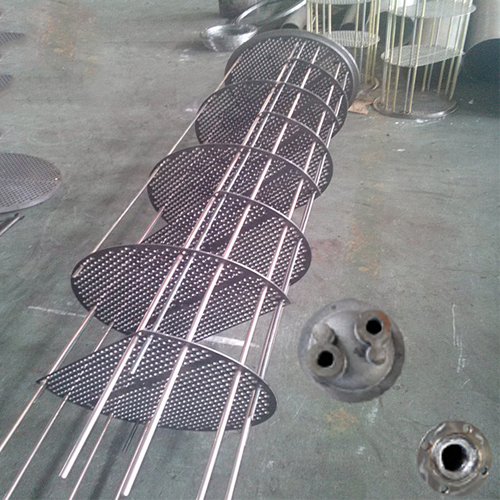

3、Start production and provide production process pictures to clients
oil cooler

Heat exchanging area(m2)	Diameter of Tube(mm)	Diameter of pipe(mm)	Design Pressure(Mpa)
2.04~3.47	1500~2300	273	0.6/1.0
2.63~3.42	1500~3000	325	0.6/1.0
8.36~18.26	1500~3200	400	0.6/1.0
18.48~30.56	1000~3200	500	0.6/1.0
35.12~49.62	2500~3500	600	0.6/1.0

Customer: * Required Fields
Prodcut Name：	Organization:	*Contact name:
*Telephone/ Fax:	*E-mail:	Country and City:

General information for heat exchanger:
Power capacity:(KW or Kcal)		Required size:(mm)
Required structure(SRZ,SRL,LT):

	Working media:	Flow rate:( m³/h)	Media temperature:(inlet)	Media temperature(outlet):	Allowable pressure drop:	Required material:
Hot side
Cold side

General information for finned tubes
The outer diameter of tube:( mm)		Tube thickness:( mm)
Tube material:( mm)		Fin height:( mm)
Fin thickness:( mm)		Fin distance:( mm)
Fin material:( mm)		The outer diameter of tube with fin:( mm)
Notes	For the best results,we recommend including the following datails: -self introduction -Required specifications -Inquire about price/MOQ
